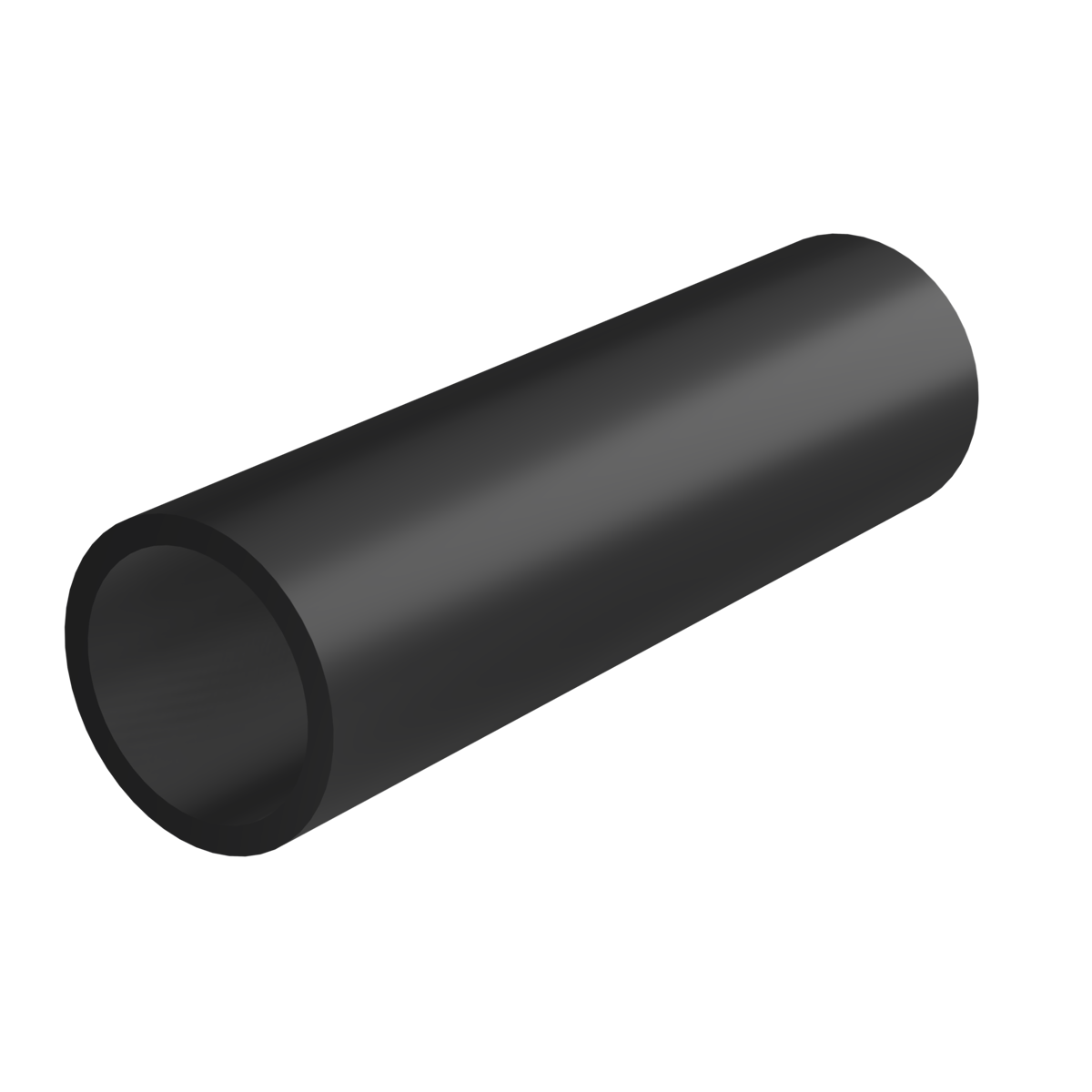

Hallingplast standard pressure pipes

Pressure pipes made of PE100 RC for transporting drinking water and sewage water. See also pressure pipes for gas.

Technical information
20–180 mm
20–1200 mm
SDR41 – SDR7.4
PE100 RC
Black or black with coloured stripes
0.96kg/dm3
Standards

EN 12201 in SDR26–SDR7.4

Certificates

Nordic Poly Mark, DK-VAND, FI

PE100 RC is the most modern PE100 material on the market and offers increased possibilities for a longer service life compared to PE100. As the PE100 RC is more resistant to point loads, existing backfill soil can be used to a greater extent if necessary. In the support pack zone, however, we recommend that you always use fractions according to national guidelines.

Flexible and weldable
Pressure pipes made of PE100 RC are flexible and weldable. It provides a system that can better cope with ground subsidence and has the best conditions to fulfil its function even in the event of various types of external influences such as floods, landslides or earthquakes.

Complete systems
Hallingplast supplies PE pipes for the vast majority of applications. With a complete system of high-quality pipes and fittings, you can consolidate all product responsibility from a single supplier. This can be a great advantage when it comes to guarantees and liability.

Hallingplast JAPI with protective jacket
Trenchless installations and installation methods have become more common for both economic and environmental reasons. For installations where damage to the pipe cannot be avoided, Hallingplast recommends the use of pipes with an extra-high-strength PP jacket, Hallingplast JAPI. This jacket protects the pipe and creates good conditions for a long service life.

Benefits of pressure pipes made of PE100 RC

  • Can be installed in trenches with a larger proportion of recycled filling material. In the so-called support pack zone, we recommended that you always use fractions according to national guidelines (<65 mm fraction or <0.5 times the outside
    diameter of the pipe if the latter is smaller)
  • Provides extra security for the pipeline owner

Hallingplast standard pressure pipes

Pressure pipes made of PE100 RC for transporting drinking water and sewage water. See also pressure pipes for gas.

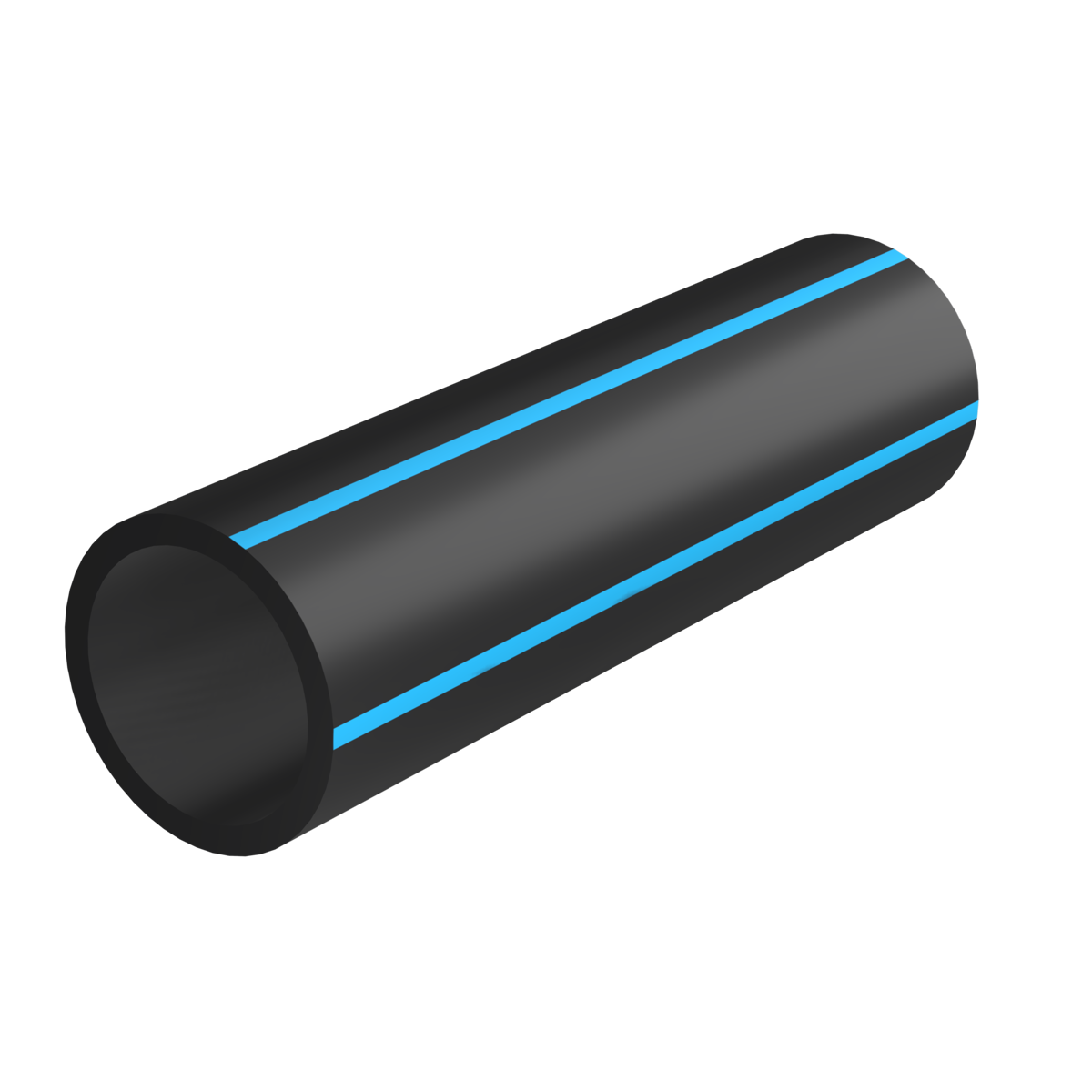

Hallingplast PE100RC Trykkrør
ISCC PLUS

Hallingplast offers this product where the raw material originates from non-fossil sources according to the mass balance principle. The pipes have the same physical and chemical properties as our standard pipes.

Read more about ISCC PLUS here
