Hallingplast SESU-XL

Pre-weighted pipe in large dimensions made of PE100 RC. Intended for submersion in water.

Technical information
250–1000 mm (or larger on request)
SDR26–SDR7.4
On request
PE100 RC (polyethylene)
PEHD (high density polyethylene)
Black with coloured stripes
0.96kg/dm3
9002-88-4
Technical information (jacket/weighting)
Olivine
PEHD (high density polyethylene)
Black with coloured stripes
3.3 g/cm3
1.7 g/cm3
1317–71-1
Standards

EN 12201

Certificate

Nordic Poly Mark, DK-VAND, FI

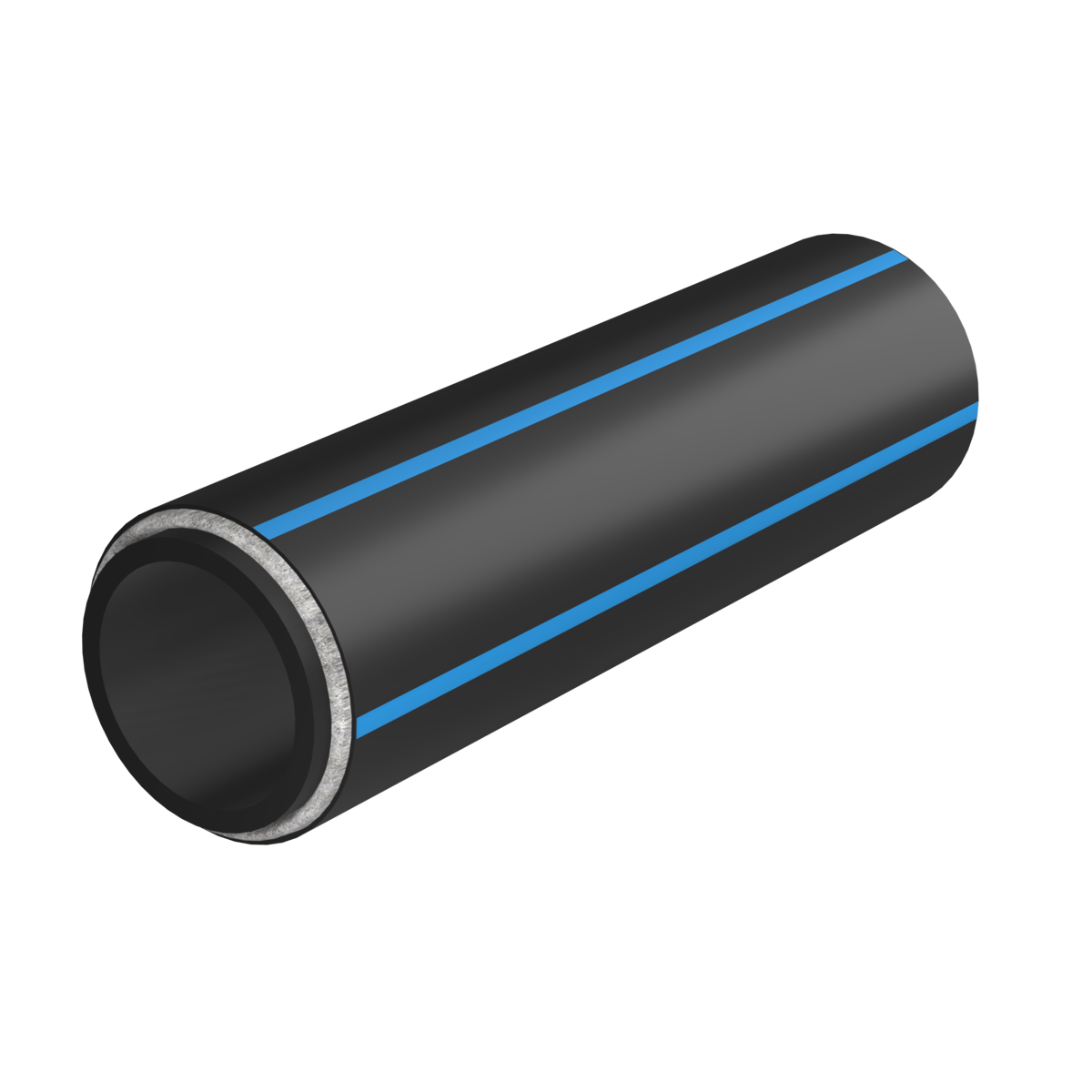

SESU-XL consists of a media pipe made of PE100 RC and a protective outer pipe made of PEHD, where the space between the two pipes is filled with mineral fractions. The fractions are made of the green-coloured mineral olivine and are locked between the outer and inner pipe by a specially designed seal at each end. The load rate is determined by the dimension of the outer pipe and the size of the space between outer and inner pipes. The pipe ends consist of standard pipes, which means that standard welding equipment can be used for both pipe types.

Long service life

The weighting is produced under controlled conditions in the factory around and along the entire pipe. This results in a non-corrosive design where all materials will have the same or longer service life than the media pipe itself. In most cases, it provides a life expectancy of at least 100 years. The built-in weighting also provides increased protection against external damage from fishing and anchors.

Hallingplast SESU – for smaller dimensions

Hallingplast SESU is available in dimensions 32–315 mm for water and sewage underwater pipelines where smaller dimensions are required. This pipe has a pre-weighted homogeneous jacket with the same density as concrete.

Hallingplast SESU CABLE – underwater pipeline for cable

Hallingplast SESU CABLE (“Self-Submerging PE pipe”) is a cable protection pipe for laying cable and fibre optic cable through seas and lakes, and is also suitable for landfalls.

Benefits of Hallingplast SESU-XL:

  • Pre-weighted pipe
  • Faster installation
  • Tailored weighting for your project (optional weight)
  • Perfect to use even for landfall
  • Long and certain service life of pipes and load material
  • No problems with corrosion on bolts
  • Smooth surface that prevents fishing and boating equipment from snagging
  • Greater resistance to external loads and scratches
  • Greater ring stiffness provides increased safety in the event of rock and earth slides
  • More efficient logistics on the construction site
  • Smooth and gentle for the installer
  • Increased safety during submersion



Hallingplast SESU-XL

Pre-weighted pipe in large dimensions made of PE100 RC. Intended for submersion in water.

ISCC PLUS

Hallingplast offers this product where the raw material originates from non-fossil sources according to the mass balance principle. The pipes have the same physical and chemical properties as our standard pipes.
